9v 12v 15v 19v 24v 1a to 5a ac dc power adapter for LED strips,webcam,toys
9v 12v 15v 19v 24v 1a to 5a ac dc power adapter for LED strips,webcam,toys
Product Description
Product Specification
Adaptor Input(AC):100-240V
Adaptor Output: 12V 1A 12W
Cable Length: 1.5m/5ft
AC plug: US 2pin
DC plug: 5.5*2.1*10mm
Certificate: FCC, EMC,U-L
| Specifications | ||
| Input Voltage Range | VAC | 100-240Vac 50/60Hz |
| Inrush Current at 110VAC, 25℃ | A | |
| Input Current(Max) | A | 1.5A(100VAC Input) |
| Power Factor | – | Meets EN61000-3-2 |
| Leakage Current(220VAC 60Hz) | mA | |
| Hold Up Time at 110VAC input, full load | ms | |
| Temperature Coefficient | ℃ | ±0.05%/℃ |
| Voltage Accuracy | % | ±2% |
| Adjustment Range | – | None |
| Min. Load | A | None |
| Total Regulation | – | ±5% |
| Ripple & Noise | mV | 120mV |
| Short Circuit Protection | % | Continuous – hiccup mode |
| Over Voltage Protection | ℃ | 110-150% of nominal (Cycle input power to reset) |
| Efficiency at Average Load | – | 88% min |
| Operation Temperature | – | 0 to +60℃, derating linearly to 50% load above 40℃ |
| Storage Temperature | – | -10 to +85℃ |
| Humidity (non condensing) | – | 10-90% RH |
| Cooling | – | Convection |
| Withstand Voltage | – | Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground) |
| Vibration (non condensing) | – | 23.52m/s2 (10 – 55Hz: constant sweep 1 min X, Y, Z for 1 hour) |
| Shock | – | < 196.1 m/s2 (20G) |
| Safety Agency Certifications | – | UL60950-1, EN609501-1, IEC60950-1, CE Mark |
| DOE Regulation | – | VI |
| Off-Load Power Consumption | mW | <210mV |
| Conducted & Radiated EMI | – | EN55023-B, FCC Class B |
| Immunity | – | EN55024 |
| Weight | G | 180g |

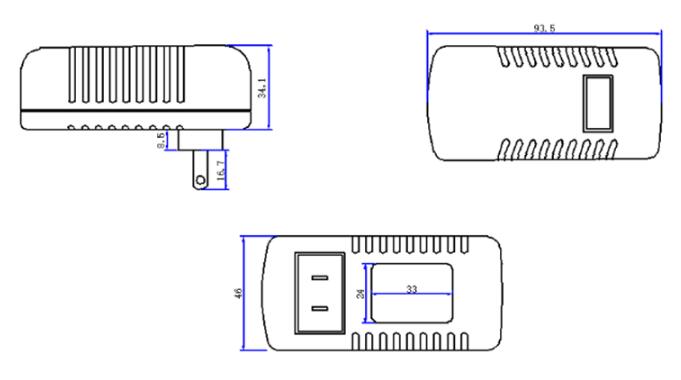

| Size(WxLxH) | mm | 93x47x34mm |
| Cable Length and Thickness | mm | 1200mm |
| AC Input Connector | – | US EU UK AU KR JP AC Plug (Accept more request) |
| Output Connector | mm | 5.5×2.1mm (Accept more request) |
| MTBF 100%, 25℃ | Hours | 50,000 hours |
| Warranty | Years | 2 years |
