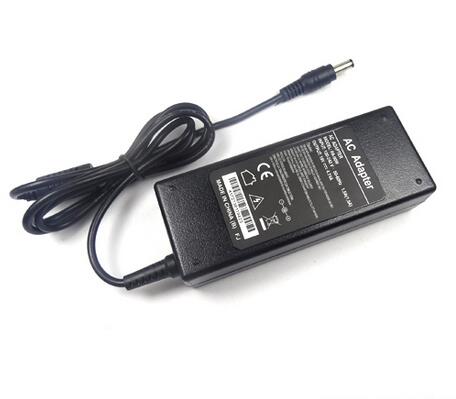

58w 2A 29v power supply for motors with CE FCC GS marked
58w 2A 29v power supply for motors with CE FCC GS marked
Output Power: 51 – 100W
Output Type: Single
Input Voltage: 220V
Output Voltage: 29V
Output Current: 2A
Commodity: 58w 2A 29v power supply with 3 years warranty
Input Condition: 100 to 240VAC 50/60 Hz 1.2A Max
Input Voltage Range: 90 to 264VAC
Input Rated Frequency: 50/60Hz
Input No Load Power Consumption: 0.5W Max At 115Vac/230Vac
Input Inrush Current: 60A Max
Efficiency: 85% Min
Rated Output Power: 58W Max
Output Voltage & Current: 29V DC/ 2A
Protection: OCP OVP SCP OPP
Input Condition | 100 to 240VAC 50/60 Hz 1.2A Max |
Input Rated Voltage | 100 to 240VAC |
Input Voltage Range | 90 to 264VAC |
Input Rated Frequency | 50/60Hz |
Input Frequency Range | 47Hz to 63Hz |
Input Current | 1.2A Max |
Input Inrush Current | 60A Max |
Input No Load Power Consumption | 0.5W Max At 115Vac/230Vac |
Efficiency | 85% Min |
Rated Output Power | 58W Max. |
Output Voltage & Current | 29VDC / 2A |
Output Load Regulation | ±5% |
Output Over Shoot | 10% |
Dielectric Withstand Voltage | 3KV 3s |
Leakage Current | 0.25 mA At 230Vac |
Protection | OCP OVP SCP OPP |
Plug | US/UK/JP/EU/AU/CN, ect type plug |
Certification | CE Rohs |
Operating Temperature | 0 to 40°C |
Storage Temperature | -10 to 85°C |
Relative Humidity | 20 to 80% |
