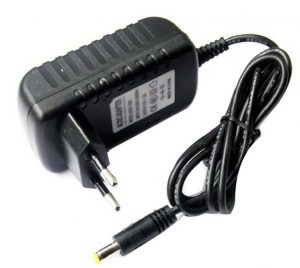

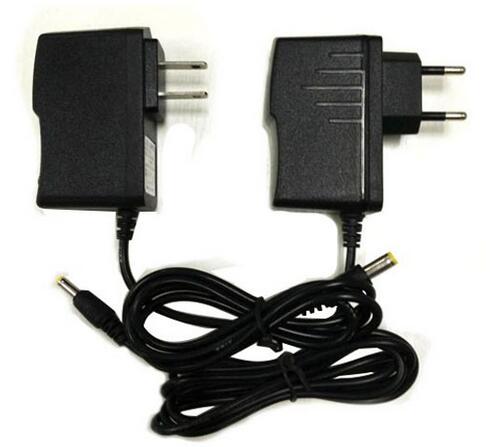

12V 1A 2A 12W 24W power supplies AC DC power adapter for LED strips CCTVs
12V 1A 2A 12W 24W power supplies AC DC power adapter for LED strips CCTVs
Usage |
* LED strip ,LED light ,LED table lamp.* Router,amplifier,CCTV camera,* Home appliances ,setup box ,speaker,* Audio & Video equipments,* Wireless communication electronics .* Medical equipments* Electrical toy |
DC Output Voltage | 12V± 5% |
DC Output Current | 2000mA |
DC Output Power | 24w |
Working Efficency | 83% |
Adapter Size | 85*39*31mm (L/W/H) |
Efficiency | level 5 |
Warranty | 2 years |
Certificates approved | TUV CB CE GS ROHS UL/CUL FCC IECS SAA C-tick |
Input Rated Voltage | 86Vac~264Vac |
Input Frequency Range | 47Hz~63Hz |
Safety protection | output voltage protection (120%-150% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Ripple and Noise | less than 60Mv at full road with 20MHz bandwidth |
DC connector | 5.5*2.1*11mm (optional) |
DC cable | 1.5m 2464UL 20AWG cable (optional) |
Operating Temperature | 0°C – +55°C |
Storage Temperature | -20°C – +85°C |
Safety Standard | EN60950 EN60601 ESD (EN61000 3-3) |
CAS (60950 ITE/TE,EN60601 Medical)FCC Part 15 subpart B Class 2 |
|
AN/NZS CISPR 22:2006 | |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Dielectric Voltage | A IEC320 three pin input—output(FG)3000Vac one minute |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Leakage Current | less than 5mA |
Standby power | less than 0.3w |
Net Weight | 156g/pcs |
Gross Weight | 13.2kg/carton |
Carton Box Size | 39*31*29cm |
