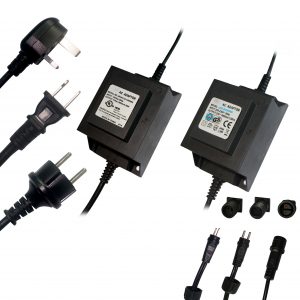

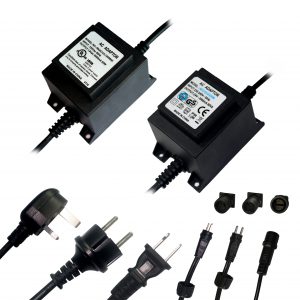

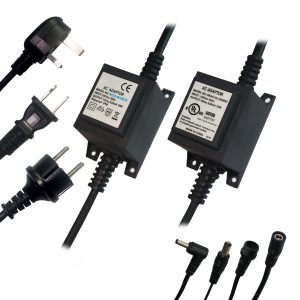

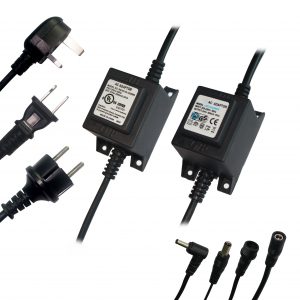

IP68 Waterproof Transformer for Garden lights Pool Lighting, 24VAC 100W 200W 250W IP68 outdoor power supplies
IP68 Waterproof Transformer for Garden lights Pool Lighting, 24VAC 100W 200W 250W IP68 outdoor power supplies
Products: swimming pool transformer 24vac output
waterproof 24vac transformer
24vac 100W 200W 250W transformer
Product Details:
Place of Origin: shenzhen
Brand Name: OEM Anenerge
Certification: CE UL GS TUV PSE KC ETL
Model Number: RYPO-24Vdc-250W
Payment & Shipping Terms:
Minimum Order Quantity: 1~10pcs
Price: 3~4usd/pcs
Packaging Details: Neutral white box packaging
Delivery Time: 3~5days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal
Supply Ability: 100000pcs/month
Detailed Product Description:
Mateiral: PC Plastic Input: 110~240Vac
Output: 24Vac 100W 200W 250W Warranty: 2years
Product: IP68 Waterproof Transformer Available: Garden Lights Swimming Lights
Original: Shenzhen
| M.N. | Size (mm) | Output Specifications | ||
| Output Voltage (V) | Output Current (A) | Output Power (W) | ||
| AC24v | 10.4a | 250 | ||
| Input Specifications | Input Voltage | AC120 | ||
| Input Frequency | 50~60Hz | |||
| Input Current | 0.45A | |||
| Input Surge Current | 40A@AC100V | |||
| Dielectric Strength | Withstanding Voltage | 2000V AC 60S | ||
| Insulation Resistance | 2000V AC 60S | |||
| Output Specifications | Voltage Accuracy | ≤5% | ||
| Ripple & Noise | ≤1%*Vout (mVp-p) | |||
| Voltage Regulation | ±0.5% max | |||
| Load Regulation | ±0.5% max | |||
| Over Voltage Protection | 150% min | |||
| MTBF | >50,000 Hrs | |||
| Operating Temperature | 0~40°C | |||
| Storage Temperature | -20~85°C | |||
| Operating Relative Humidity | 5-95% RH | |||
| Over Currrent Protection | 150% min | |||
| Shot-cut Protection | Auto Recover | |||
| Certificate | CE, ROHS, CB, UL, CUL, FCC, CCC, | |||
| Products warranty | 2 years | |||
Quick Details:
- Output: 24Vac
- Power: 100W 200W 250Watt
- Installation: desk-top (or as per client’s requests)
- Color: white or black
- Socket: without/waterproof socket
- Material: PC plastic
- LED indication: yes
- Safety standard: EN61558-2-16/EN60950/EN61347-2-13/UL1310/EN60050
- Protection: short circuit/overload/over voltage/over temperature
- No load power consumption: less than 0.1W
- Certifications: UL, ETL, FCC, CE, GS, BS, SAA, CCC
- Standards: UL/CUL, GS, BS, CE, SAA, C-Tick, CB, PSE, CCC, KC
- Energy efficiency level VI
- 2 years warranty
- MTBF: 50000 hours
- Plugs available: US/EU/UK/AU/KC/PSE/3C
- RoHS compliant: yes
- Working environment: 0°C-40°C, 5%-90%RH
- Storage environment: -20°C-85°C, 5%-95%RH
I. It is of waterproof IP68 Transformer , breaking the traditional aluminum housing practices, plastic shell, good security, water resistance, water resistance than aluminum safety and better.
2. Safety :. ETL / UL, ETL / GS, CE, CB, SAA, UL, TUV certification.
3. Waterproof grade: IP68
4. Inputs and output line will be equipped with waterproof as well and Outputs will be to your choice.
5. Waterproof wire for choice: HO7 /HO5 rubber line, SJTW , SPT-1W ,SPT-2W ,SPT-1 SPT-2, HO3VDE line.,suitable for light control, supporting remote control, remote control transmitter. light control
6. Usage:waterproof outdoor lights, garden lights, buried lights, underwater lights, waterproof lighting, LED lights, fountain lights, Christmas lamps. Pumps, motors, finger lights.
7, Available for BBQ grill power supply
