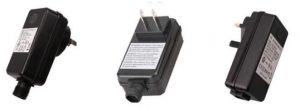

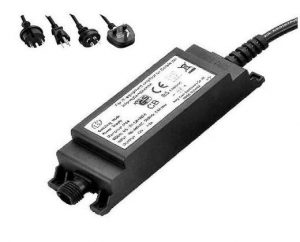

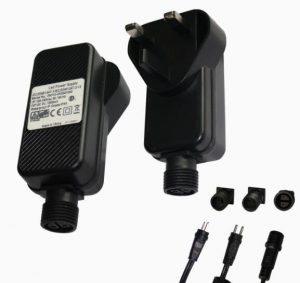

IP68 Waterproof power supply, outdoor IP68 transformer,waterproof power adapter

IP68 Waterproof power supply, outdoor IP68 transformer,waterproof power adapter for led lights

  • Electrical description:

1. Input voltage: 100-240V AC
2. Input frequency range: 47-63Hz
3. Efficiency: >80%
4. Output power: 12W
5. Output voltages: 12V DC
6. Output current: 1000mA
7. Protections: OCP, SCP, OVP and OTP
8. Operating temperature: -30 to 60°C
9. Storage temperature: -40 to 70°C
10. Humidity range: 35 to 80% RH
11. Constant voltage precision: ±5%
12. Safety compliance: UL8750+1310+EN61347-1EN61347-2-13EN61558, EN60950 EN60065, EN62368
13. FCC: EN55015, EN61000-3-2, EN61547, GB17743 and GB17625.1
14. MTBF: ≥60,000 hours at 25°C
15. Waterproof US waterproof two pins plug and IP68 main enclosure
16. Input with UL with earth pin plug + SJTW 2×0.824mm
17. Output cable: UL SPT-1W 20AWG, 18AWG H05RN-F 2X0.75, 2×1.0mm
18. Female waterproof socket and male DC waterproof plug connect, easy to use and convenient to connect DC load product

  • Features:

1. Universal AC input/full range
2. Output isolated constant voltage power supply, meets class II standard
3. Protections: short-circuit/overload/over-voltage/over-temperature
4. Enclosure sealed with silica gel and ultrasonic to meets IP68 for outdoor use
5. High reliability and real long lifespan
6. Low-noise, energy-saving
7. Fire-proof plastic case
8. Compact size and low cost
9. Low ripple design
10. OEM/ODM orders are accepted
11.Energy efficiency: CEC, DOE, Nrcan, Erp VI
12.Two years quality guarantee

  • Mechanical appearance:
  • Fire-proof plastic case housing
  • Waterproof IP68
  • Cord connected type and easy installation DC male and female plug
  • Greens environment-protection, meets RoHS Directive-compliant, REACH, 12P, 16P, 18P, nP according to customer’s requirements
  • Applications: outdoor laser lights, LED outdoor lights, CCTV, IT products, BBQ, home appliance
