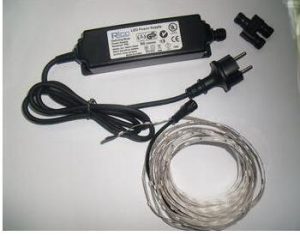

12VDc 1.5A 18W water-resistant transformer, outdoor led power supply,switch adapter

Electrical description:

1.Input voltage: 100-240V AC
2.Input frequency range: 47-63Hz
3.Efficiency: >80%
4.Output power: 18W
5.Output voltages: 18DC
6.Output current: 1000mA
7.Protections: OCP, SCP, OVP and OTP
8.Operating temperatures: -30-60℃
9.Storage temperatures: -40-70℃
10.Humidity range: 35 to 80% RH
11.Constant voltage precision: ±5%
12.Safety compliance: UL8750+1310+EN61347-1EN61347-2-13EN61558, EN60950 EN60065, EN62368
13.FCC: EN55015, EN61000-3-2, EN61547, GB17743 and GB17625.1
14.MTBF: ≥60,000 hours at 25°C
15.Waterproof US waterproof two pins plug and IP68 main enclosure
16.Input with UL with earth pin plug+SJTW 2X0.824mm
17.Output cable: UL SPT-1W 20AWG, 18AWG H05RN-F 2X0.75mm, 2×1.0mm
18.Female waterproof socket and male DC waterproof plug connect, easy to use and convenient to connect DC load product.

Features:

1.Universal AC input/full range
2.Output isolated constant voltage power supply, meet class II standard.
3.Protections: short-circuit/overload/over-voltage/over temperature
4.Enclosure sealed with silica gel and ultrasonic to meet IP68 for outdoor use.
5.High reliability and real long lifespan
6.Low-noise, energy-saving
7.Fire-proof plastic case
8.Compact size and low cost
9.Low ripple design
10.OEM/ODM orders are accepted
11.Energy efficiency: CEC, DOE, Nrcan, Erp VI.
12.Two years quality guarantee.

Mechanical appearance:

• Fire-proof plastic case housing
• Waterproof IP68
• Cord connected type and easy installation DC Male and female plug.
• Greens environmental protection, meet RoHS, Reach, 12P, 16P, 18P, nP according to customer’s requirements.
• Application: outdoor laser lights, LED outdoor lights, CCTV, IT products, BBQ, home appliance
