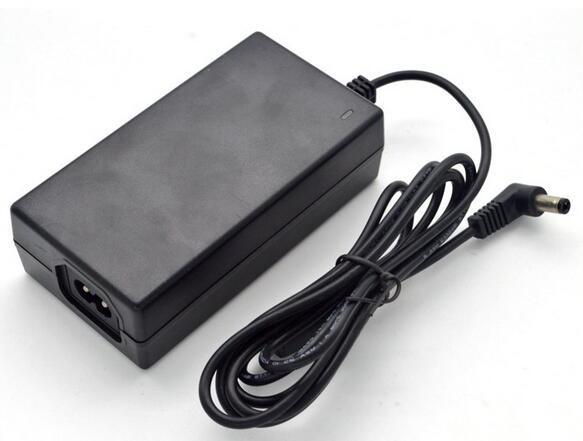

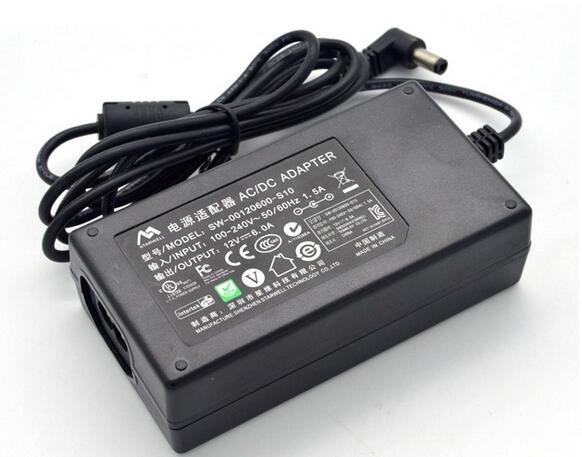

12v 5a ac to dc power adapter UL CE class II power supply for monitors
12v 5a ac to dc power adapter UL CE class II power supply for monitors
| MODEL | AE-1200500A2 |
| AC Cable Style | US,UK,EU,SAA,KC,PSE—- |
| Input Volt.&Freq. | 100~240VAC&50-60Hz Typ.
90~264VAC&47~63Hz Range |
| Input Current | 1.8A Max. |
| Inrush Current | 80A Max. |
| Leakage Current | 0.25mA @ 230VAC |
| No-load Consumption | <0.1W |
| Energy Level | Level VI |
| Withstanding Voltage
(Between Pri. and Sec.) |
3000VAC 1Minute 10mA Max. |
| Output Voltage | 12VDC |
| Output Current | 5A |
| Output Power | 60W Max. |
| Ripple&Noise | <120mV |
| Load Regulation | ±5% |
| Protection | SCP,OCP,OPP |
| Dimension | 119*52*32 mm |
| Burn-in | 100%, full-load 4Hours Min. |
| Mean Time Between Failures | Over 100K Hours
Full Load@25℃ |
| Operating Temperature | -10~40℃ |
| Storage Temperature | -20~80℃ |
| Relative Humidity | 20%~80% |
| Safety Standard | CE,UL,cUL,FCC,CB,ROHS,SAA,C-Tick |
Q:Can you provide a sample?
A:Yes,we offer free sample.
Q:Whether do you provide customized design?
A:Yes,modified and customer design is available.
Q:What is your payment terms?
A:Paypal,T/T,Western Union or others.
Q:How will you ship the products?
A:For large order,we will ship by sea.For small oeder,we will ship by air or courier. we have good cooperation with DHL, UPS, FEDEX,China air Post ,and can provide economic and fast shipment service .
Q:How about the leadtime of the sample?
A:5-7 days
Q:How about the leadtime for the production?
A:According to your order quatity.
Q:How about the warranty for your power supply?
A:3 years
