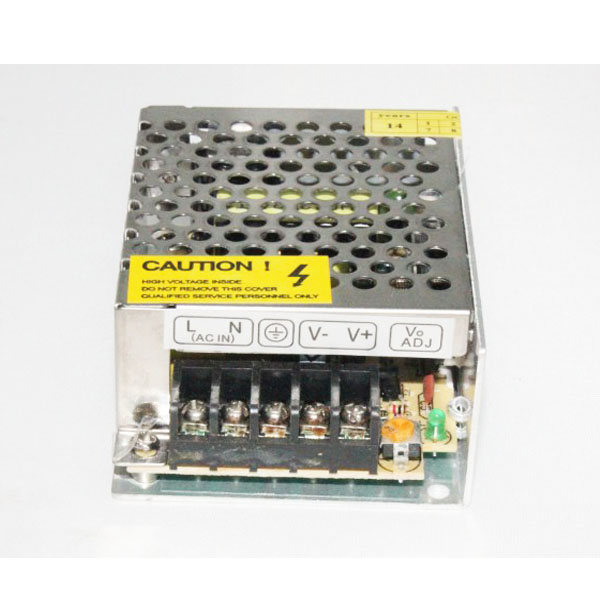

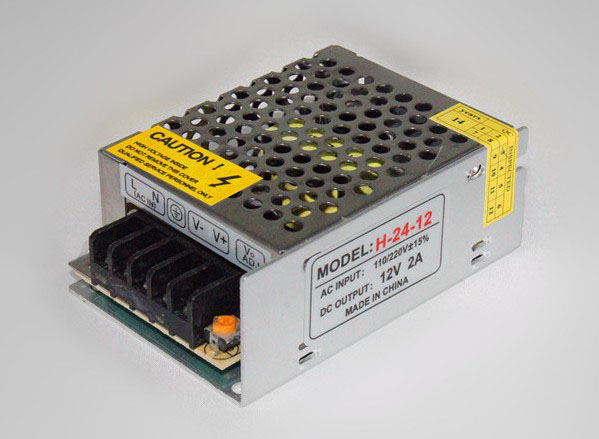

Model KL-24W-12V
Output DC Output voltage 12V
Rated output current 2A
Output current range 0～2A
DC output power 24 W
Wave and noise(Max) 100mVp-p
Adjustable range for DC voltage 10.8～13.2V
Voltage accuracy 土1.0%
Inlet adjustment rate 土0.5%
Load adjustment rate 土0.5%
Setup, rise, hold up time 300ms,50ms/230VAC8OOms,50ms/115VAC(Max load)
Retention time(yp.) 90ms/230VAC l2ms/ll5VAC(Max load)
Input Voltage range 85-264VA or l20～370VDC
Frequency range 47～63Hz
Efficiency (Typ.) 79%
Alternating current (Typ.) 0.6A/115VAC 0.35A/230VAC
Surge current (Typ.) Cold boot： L3a/115V,25A/230VAC
Leakage current < 0.75mA/ 240VAC
Protect Overload protection 105%～150% of output power
Safety Mode:Hiccup mode; Reset: auto recovery
Over voltage protection 13.8V～16.2V
Safety Mode:Hiccup mode，Reset: auto recovery
Over Temp. protection Once inside crystal Temp. Beyond 140℃,
beginning of Tempe.protection.
Safety Mode：turn off power output,
Recovery after Temp. Turn right.
Working
Status Working Temp. -20～+70℃
Working humidity 20～90%
Storage Tem.&humidity -20～+85℃, 10～95% RH
Temperature coefficient 土0.03%/℃( 0～50℃)
Vibration 10～500Hz,5G 10min/cycle，X、Y、Z axle every each 60mins
Safety&EMC Safety standard Certificates marked
Withstand voltage I/p-0/P: 3KVAC I/p-FG: 1 .5KVAC 0/p-FG: 0.5KVAC
Insulation resistance I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Satisfy EN55022{ClSPR22)ClassB,EN61000-3-2,’3
EMC immunity Satisfy EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1, A industrial standard
Others MTBF ≥ 330.8K hrs. Ml L-HDBK-217F ( 25℃)
Dimension 85*58*35
Packaging Kg;
