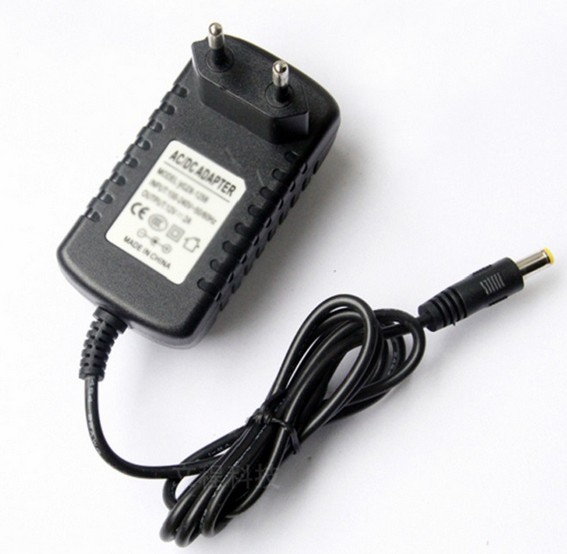

12V 1A 1.5A 2A 2.5A power adapter UL CUL CE FCC CB good quality power supply

12V 1A 1.5A 2A 2.5A power adapter UL CUL CE FCC CB good quality power supply

DESCRIPTION: 110V AC to 12V AC Adapter 12V 1A 1.5A 2A
OUTPUT
Output Voltage ( DC ) 12 V
Output Current ( Rated ) 1A / 1.5A / 2A
Current Range 0-2A
Power 12W / 18W / 24W
Ripple & Noises (max.) 160mVp-p
Voltage Tolerance ± 3%
Line Regulation ±2%
Load Regulation ±5%
Set-up, rise, hold-up time: 500ms, 20ms, 50ms/230VAC 500ms, 20ms, 15ms/115VAC at full load
DC Connector: 5.5*2.5mm / 5.5*2.1mm/ 3.5*1.35mm / 4.0*1.7mm / 2.5*0.7 mm or customized
INPUT
Input voltage (AC) 100-240V
Voltage Range ( AC) 90-264V
Frequency Range 47 ~ 63Hz
Efficiency: 85%
AC input current: 0.5A / 100VAC
Leakage Current: 0.25mA / 240VAC
No load power consumption: < 0.3W PROTECTION
Over Load Protection: 115 ~ 150% rated output power
Protection type : Hiccup mode, The power supply will recover automatically after the overload is removed. Power on reset is not required.
Over Voltage Protection: 110~ 160% rated output voltage
Protection type : Clamp by zener diode, output short
Short Circuit Protection: yes
ENVIRONMENT Working Temp.: -5°C-+40°C
Working Humidity: 20 ~ 90% RH non-condensing
Storage Temp. & Humidity: -20 ~ +85°C , 5 ~ 95% RH
Vibration: 10 ~ 500Hz, 2G 10min./1cycle, period for 30min. each along X, Y, Z axes
OTHERS Hi-pot Voltage 3500V
MTBF 500,000 hours
WARRANTY:1 Year or 2 Years
CERT.: ETL / GS/ CB / C-Tick / FCC / CE / RoHS

Power adapter factory production progress of power adapter Power adapter anenerge

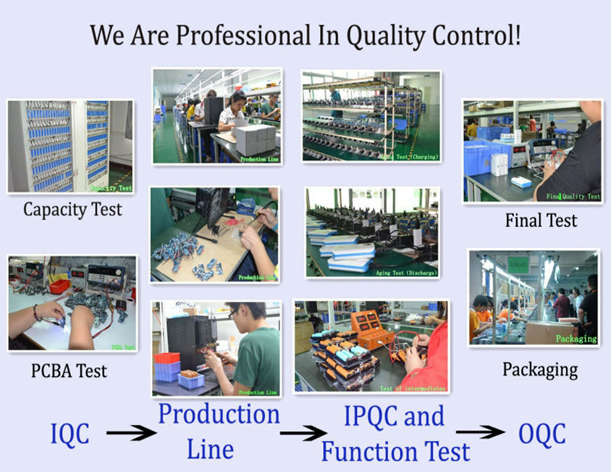

QC control

anenerge company

anenerge company

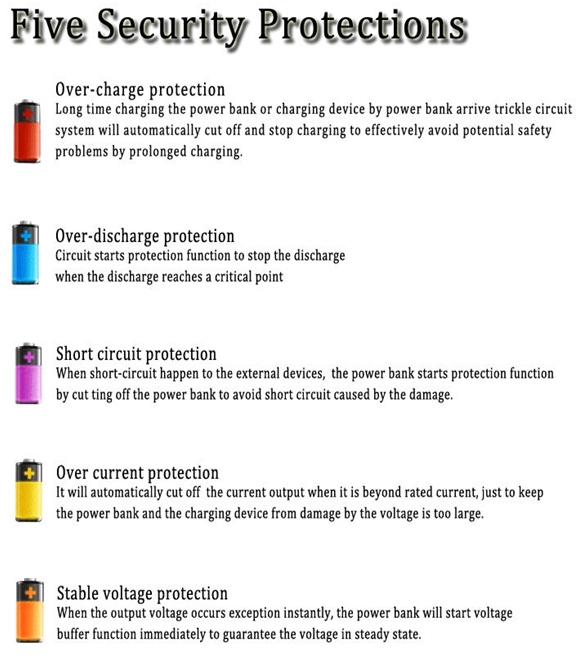

Security protection of power bank
