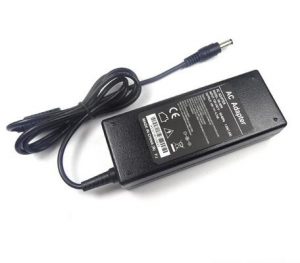

Anenerge 12v power adapter for LED strip 12v 2a 3a 5a 8a 10a power supplies with UL SAA CE CB marked
Anenerge 12v power adapter for LED strip 12v 2a 3a 5a 8a 10a power supplies with UL SAA CE CB marked
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications
| MODEL | DA-120-12 | DA-120-24 | |||||||||
| Output | DC Voltage | 12V | 24V | ||||||||
| Rated current | 10A | 5A | |||||||||
| Current range | 0-10A | 0-5A | |||||||||
| DC power | 120W | 120W | |||||||||
| Ripple and noise | 100mVp-p | 100mVp-p | |||||||||
| Intet stability | ±0.5% | ±0.5% | |||||||||
| Load stability | ±1% | ±1% | |||||||||
| Intput | AC voltage range | AC100~240V 47~63Hz | |||||||||
| Efficiency | 77% | ||||||||||
| Leakage current | < 0.5mA/240VAC | ||||||||||
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||||||||
| Over voltage | 13.8~16.2V | 28.8-33.6V | |||||||||
| 200ms,100ms,30ms | |||||||||||
| Safety | Setup,rise,hold up time | 200ms,100ms,30ms | |||||||||
| Vibration | 10~500Hz,2G 10min,/1 cycle | ||||||||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | ||||||||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||||||||
| Environment | Temperature coefficient | ±0.03%/°C (0~50°C ) | |||||||||
| Working temperature and humidity | -10°C ~+60°C,20%~90%RH | ||||||||||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | ||||||||||
| Other | Overall dimension | 129*55*29 mm | |||||||||
| Weight | 0.6Kg | ||||||||||
| Certificate | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | |||||||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | |||||||||||
