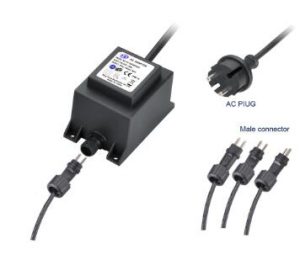

24VAC 80W swimming pool waterproof transformer, IP68 power supply,with CE UL marked

24VAC 80W swimming pool waterproof transformer, IP68 power supply,with CE UL marked

Product Details:
Place of Origin: shenzhen
Brand Name: OEM Anenerge
Certification: CE UL GS TUV PSE KC
Model Number: RYPO-24VA-80W
Payment & Shipping Terms:
Minimum Order Quantity: 1~10pcs
Price: 1~3usd/pcs
Packaging Details: Neutral white box packaging
Delivery Time: 3~5days
Payment Terms: L/C, D/P, T/T, Western Union,Paypal
Supply Ability: 100000pcs/month

Detailed Product Description
Mateiral: ABS Plastic Input: 110~240Vac
Output: 24Vac 80W Warranty: 2years
Waterproof Rate: IP68


Quick Details:

Phase: Single

Coil Structure: Toroidal

Coil Number: Autotransformer

output voltage: 24v

output current: 3.33a

power: 80w

connection: desktop

output type: ac/dc

warranty: 2year

input: 110v~240vac input

usage: linearity

IP rating: IP68 waterproof rate

1)CE ETL TUV GS approval(EN61558-2-6) IP68

2)Specifications :

  • Input voltage and frequency :230V AC 50 HZ
  • Output voltage:24 AC
  • Output current :3.3A
  • Watts:80 VA MAX

3)Advantages :

  • Watertight
  • longer life
  • no radio interference
  • competitive price

4)Other imformations:

  • This adapter also called linear adapter and low – efficiaency adapter.
  • The output of adapter can design according to customers requirements.

I. It is of waterproof IP68 Transformer , breaking the traditional aluminum housing practices, plastic shell, good security, water resistance, water resistance than aluminum safety and better.

2. Safety :. ETL / UL, ETL / GS, CE, CB, SAA, UL, TUV certification.

3. Waterproof grade: IP68

4. Inputs and output line will be equipped with waterproof as well and Outputs will be to your choice.

5. Waterproof wire for choice: HO7 /HO5 rubber line, SJTW , SPT-1W ,SPT-2W ,SPT-1 SPT-2, HO3VDE line.,suitable for light control, supporting remote control, remote control transmitter. light control

6. Usage:waterproof outdoor lights, garden lights, buried lights, underwater lights, waterproof lighting, LED lights, fountain lights, Christmas lamps. Pumps, motors, finger lights.

M.N. Size (mm) Output Specifications
Output Voltage (V) Output Current (A) Output Power (W)
AC24v 3.33a 80
Input Specifications Input Voltage AC120
Input Frequency 50~60Hz
Input Current 0.45A
Input Surge Current 40A@AC100V
Dielectric Strength Withstanding Voltage 2000V AC 60S
Insulation Resistance 2000V AC 60S
Output Specifications Voltage Accuracy ≤5%
Ripple & Noise ≤1%*Vout (mVp-p)
Voltage Regulation ±0.5% max
Load Regulation ±0.5% max
Over Voltage Protection 150% min
MTBF >50,000 Hrs
Operating Temperature 0~40°C
Storage Temperature -20~85°C
Operating Relative Humidity 5-95% RH
Over Currrent Protection 150% min
Shot-cut Protection Auto Recover
Certificate CE, ROHS, CB, UL, CUL, FCC, CCC,
Applications Laptop, Mobile, LCD display
