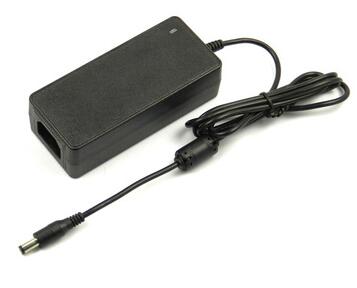

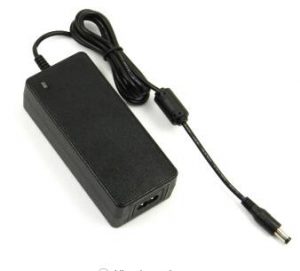

12V 8A 96Watt power adapter for CCTV cameras, with CE UL TUV marked
96w power supply Energy Efficiency Grade VI 12v 8a ac dc power adapter with UL CE marked
Quick Details
Place of Origin:Guangdong, China (Mainland)
Company: HK Anenerge Co., Limited
Model Number: AE-1208000
Output Type: DC
Connection: Desktop
input: 100~240V AC 50/60Hz
AC plugs: US,UK,EU,AUS,KR types AC plug with C6,C8,C14 types connector,etc.
output: 12v8.0A
DC side: 1.2M/1.5M/1.8M cable with 5.5*2.1/5.5*2.5mm DC connector,Customizable
Protection: OVP, OCP, SCP, OTP, OPP
certificate: cUL/UL/CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS
OPT: -10℃ to +45℃
warranry: 3 years
Efficiency: Eff (av) > 90 % (Energy Efficiency Grade VI)
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
96w power supply Energy Efficiency Grade VI 12v 8a acdc power adapter
a. 1pc per inner box
b. 40pcs per carton
c. custom is acceptable
Port: shenzhen
Mode | Constant voltage |
Input | 100-240VAC, 50/60Hz |
Output | 12V 8A 96W |
Energy efficiency | level VI |
DC cord length | 1.2m/1.5m/1.8m, etc. |
DC jack size | 5.5*2.5mm/5.5*2.1mm/3.5*1.35mm/4.0*1.7mm/2.5*0.7mm/5.5*1.0mm/4 pin, etc. |
Dimension(L*W*H) | 153*60*38mm; 6.02″*2.36″*1.50″ |
AC inlet | C6/C8/C14 |
AC cord length | 1.2m/1.5m/1.8m, etc. |
AC plug | US/EU/AU/UK/KR/CH/IT, etc. |
Certifications | class 2 UL1310 / cUL / UL / level VI / CE / TUV / GS / FCC / KC / KCC / SAA / RoHS / CB / C-Tick / RCM / PSE |
Protections | Short circuit protection, over voltage protection, over current protection |
Working environment | -10°C~+40°C 5%~90%RH |
Storage environment | -20°C~+85°C 5%~95%RH |
Cooling method | Natural cooling down |
RoHS compliant | Yes |
Warranty | 3 years |
Application | LED lighting, communication, appliances, security cctv camera, medical, audio, 3D printer, recliner massage chair, laptop, vending machine, water purifier, etc. |
