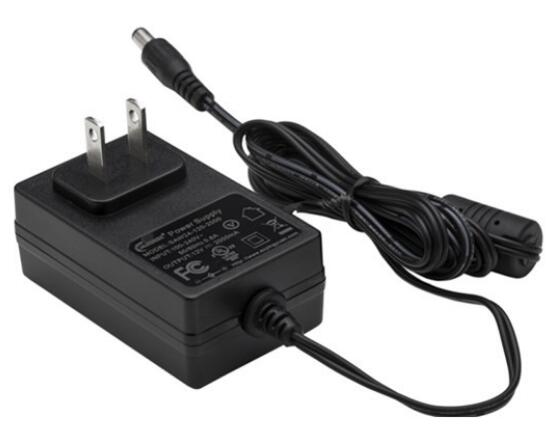

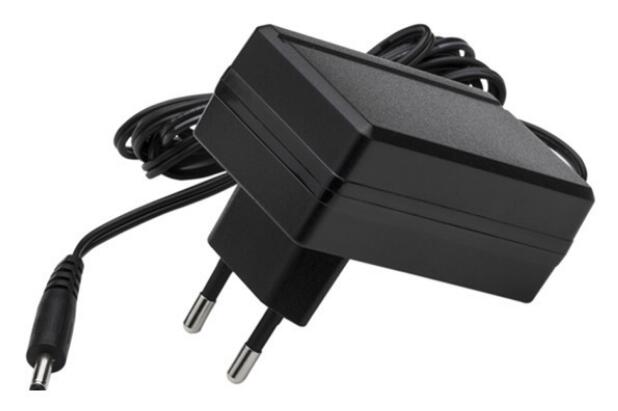

110v-240v 12V 0.5A 1A 1.5A 2A 3A 4A 5A Wall mounted AC/DC power adapter
110v-240v 12V 0.5A 1A 1.5A 2A 3A 4A 5A Wall mounted AC/DC power adapter
Output Type: DC
Connection: Plug In
Product Name: power adapter
Input voltage: AC100~240V
Output voltage: 5V 9V 12V 13V 15V 19V 24V
Certificate: CE FCC ROHS C-tick
Type: Wall mount adapter
DC Jack: 5.5*2.1mm / 5.5*2.5mm / 4.0*1.7
Color: black/white
Lead time: 7-10 days
Warranty: 2 Years
Packing: White box/pcs
Product Name | 110v-240v 12V 0.5A 0.7A 1A 1.5A 2A 3A 4A 5A Wall mounted AC/DC power adapter |
AC Cable Style | US,UK,EU,SAA,KC,PSE |
Input Volt.&Freq. | 100~240VAC&50-60Hz Typ.
90~264VAC&47~63Hz Range |
Input Current | 1.2A Max |
Inrush Current | 30A Max |
Leakage Current | 0.25mA @ 230VAC |
No-load Consumption | <0.1W |
Energy Level | Level VI |
Withstanding Voltage | 3000VAC 1Minute 10mA Max |
Output Voltage | 5VDC-24VDC |
Output Current | 0A-5A |
Output Power | 36W Max. |
Ripple&Noise | <120mV |
Load Regulation | ±5% |
Protection | SCP,OCP,OPP |
Dimension | 93.5*46*34.1 mm |
Burn-in | 100%, full-load 4Hours Min. |
Mean Time Between Failures | Over 100K Hours
Full Load@25℃ |
Operating Temperature | -10~40℃ |
Storage Temperature | -20~80℃ |
Relative Humidity | 20%~80% |
Safety Standard | UL,cUL,CE,FCC,CB,SAA,PSE,KC,C-Tick,GS… |
